Серия DZA (сварка прокатки гибки)

Категория:

Продукция

Пластиковый лист сварочный аппарат

Горячая линия:

86-15705856568

Запрос продукта

Application：

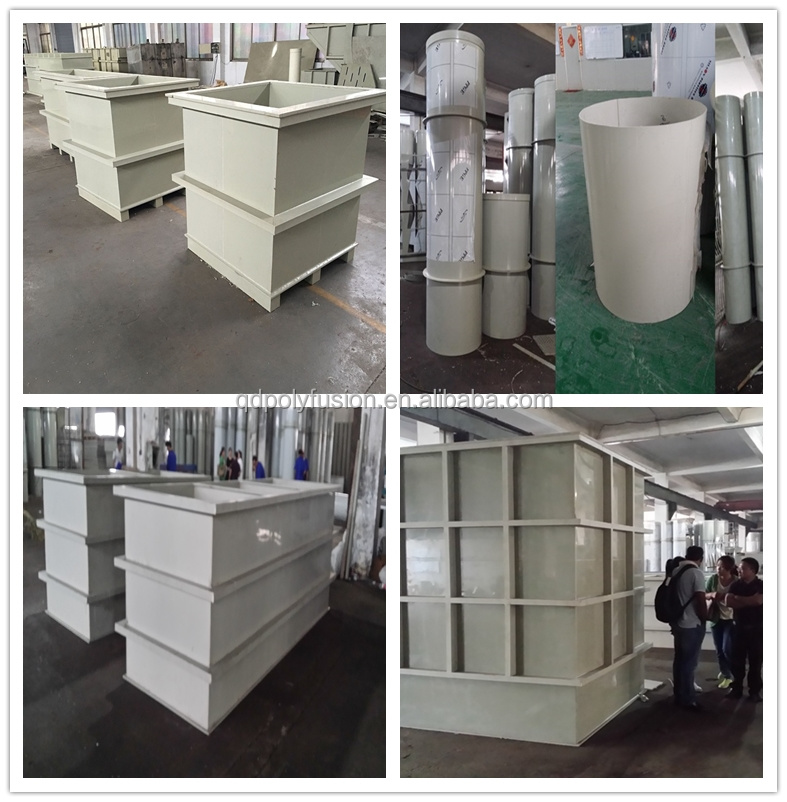

Mining Technology, Building Industry, HDPE Boat, Manufacture of Reservoirs, Tanks and Containers, Manufacture of Plastic Apparatus, Pipeline Construction, Ventilation Systems and Ventilator Manufacture, Water Treatment Systems, Scrubbers, Environmental Technology, Aquaculture and Swimming Pools, Surface Treatment Metals, Buffer Tanks, Beverage and Food Industry, Pump Manufacturing, Nautical Sector, Transport and Logistics

Feature:
●PLC touch-panel control system, capable of automatically adjusting the temperature, time and pressure according to the parameters of material under processing, suitable for weld, rolling and bending thermoplastic plates made of HDPE,PP,PVC,PVDF,PPN,PPH...

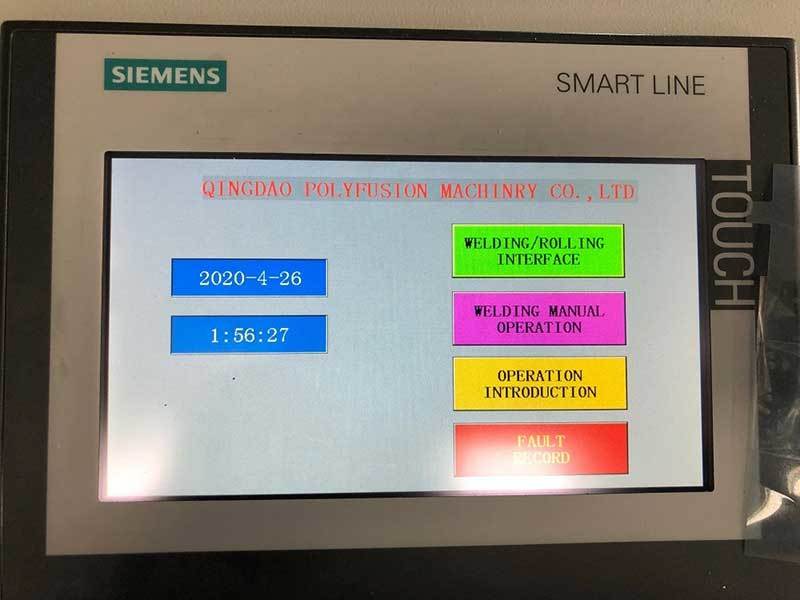

●Siemens PLC with 7" Siemens-Touch screen.
●Process forces regulated via proportional valve.
●Brand-new integrated frame, highly reliable transmission mechanism, stable in work and superior in performance.
●2mm to 50mm plastic sheet thickness horizontal weld is common capabilities. 3mm to 30mm for bending 90°Angle. Specialized anti-corrosive surface treatment technology, making the surface coating always new as time goes by. Integrated intensity of the rack, stable performance, transportation and installation are easier.

Model	DZA2000	DZA3000	DZA4000	DZA5000	DZA6000	DZA7000
Processing Length(mm)	2000	3000	4000	5000	6000	7000
Butt-Fusion Thickness(mm)	3~50	3~50	3~50	3~50	3~50	3~50
Bend Thickness(mm)	3~30	3~30	3~30	3~30	3~30	3~30
Rolling Thickness(mm)	3~30	3~30	3~30	3~30	3~30	3~30
Range of Rolling Diameter(mm)	≥360mm	≥360mm	≥450mm	≥550mm	≥600mm	≥600mm
Range of Bend	0~145°	0~145°	0~145°	0~145°	0~145°	0~145°
Pressure of Air Supply	6-8kg.f/cm²	6-8kg.f/cm²	6-8kg.f/cm²	6-8kg.f/cm²	6-8kg.f/cm²	6-8kg.f/cm²
Rated Voltage	220V	220V/380V	220V/380V	380V or customized	380V or customized	380V or customized
Heating Plate Power(weld)	3.0KW	4.5KW	6.0KW	7.5KW	9KW	10.5KW
Heating Plate Power(bend)	6KW	9.0KW	12.0KW	15KW	18KW	21KW
Power of Rolling Motor	2.2KW	4KW	6KW	7.5KW	9.0KW	11KW
Dimension (mm)	370032001100	470032001100	577032001200	686035001250	786035501400	906035001450
Application	Plastic Sheet/Board made from HDPE,PP,PVC,PVDF,PPS,PPN,PPH......

Гарантия качества

Мы имеем сертификат ИСО 9001 и утверждение КЭ, БВ, СГС и КНАС с силой обслуживания, хорошим качеством и милой конкурентоспособной ценой. Самое большое преимущество клиентов наша цель, качество машины жизнь нашей компании. За многие годы роста у нас есть наши лучшие партнеры в мире. № 1
