Description：
Butt Fusion Fittings are most often used for the installation of various pipes in places where the pipeline bends - where it makes turns, changes its size, etc. The fact is that such segment fittings are created by welding several parts of HDPE pipes into a single part, which makes it easy to obtain the required shape without loss of quality.

"POLYFUSION" company provides the purchase of polyethylene pipe fittings. They are used to construct pipelines for transporting water or other liquid and gas media. Installed at the flange connection of branch, rotating, small or large diameter transition, closed regulating valves.

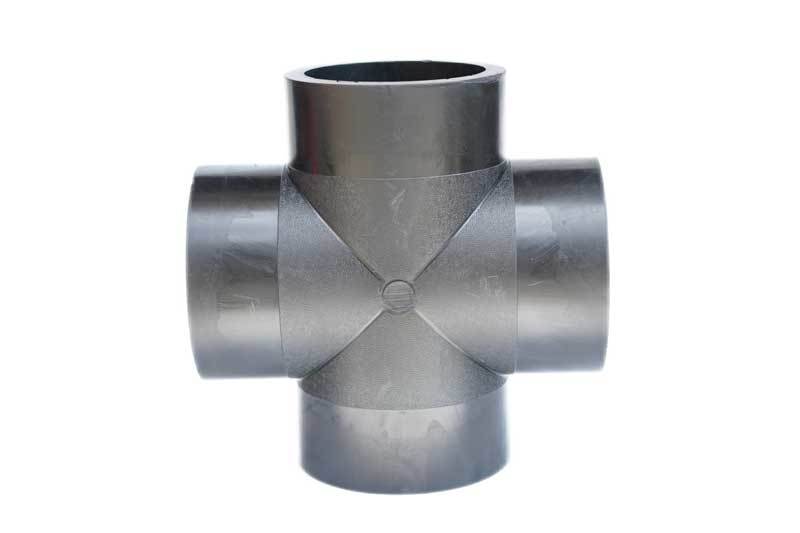

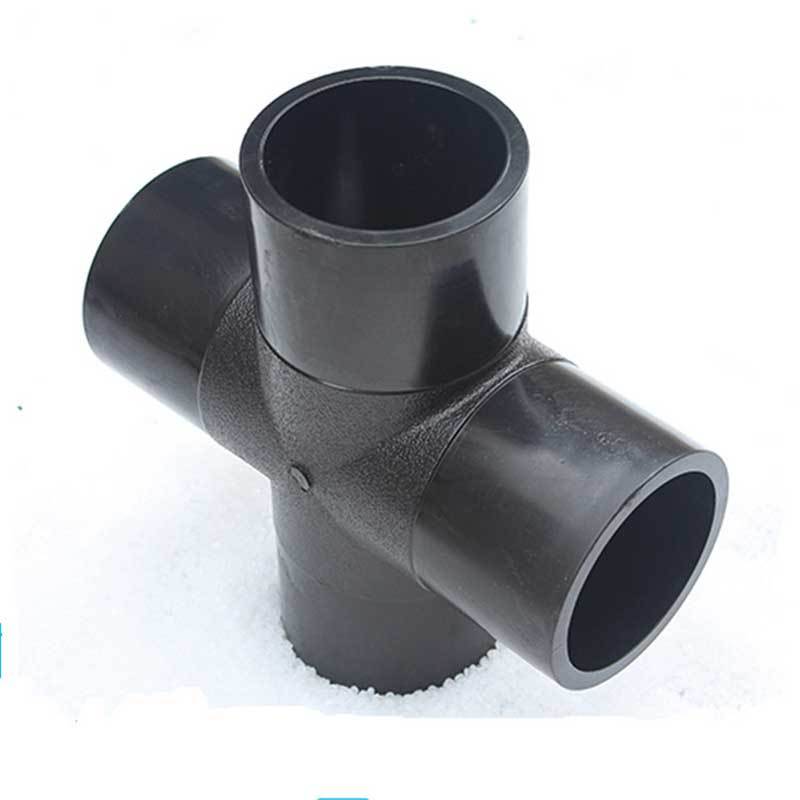

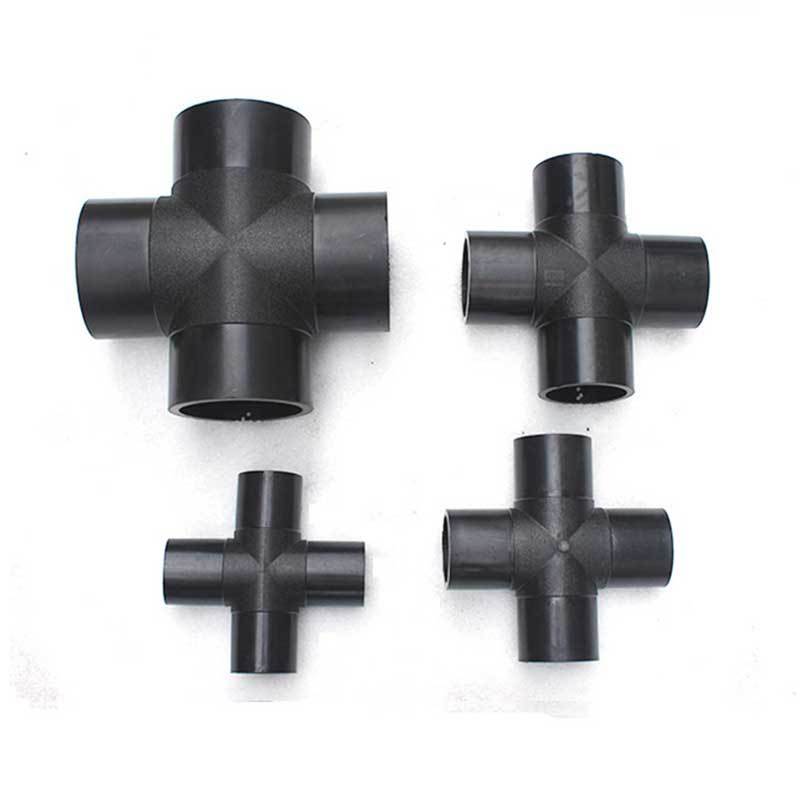

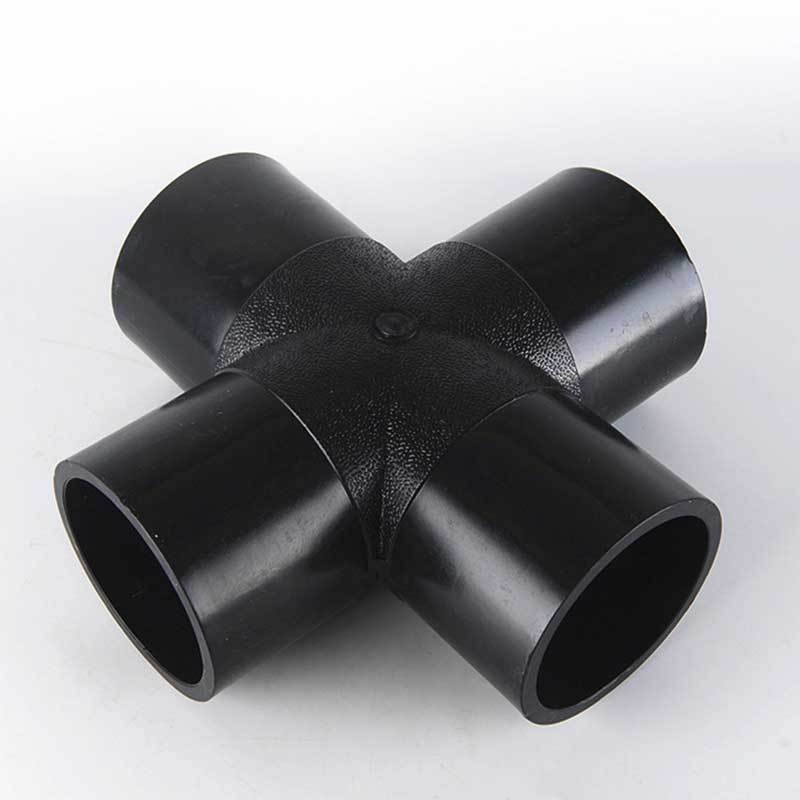

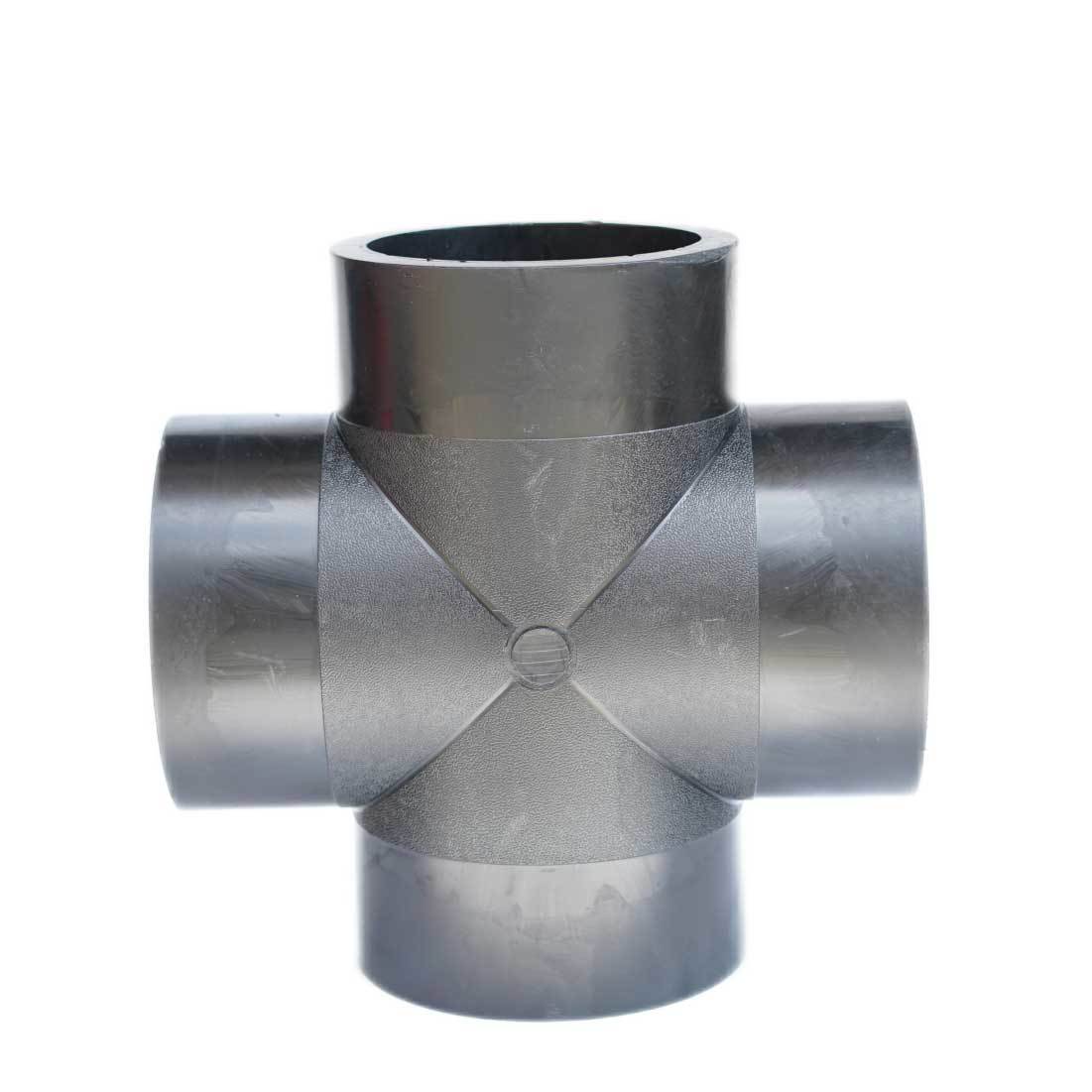

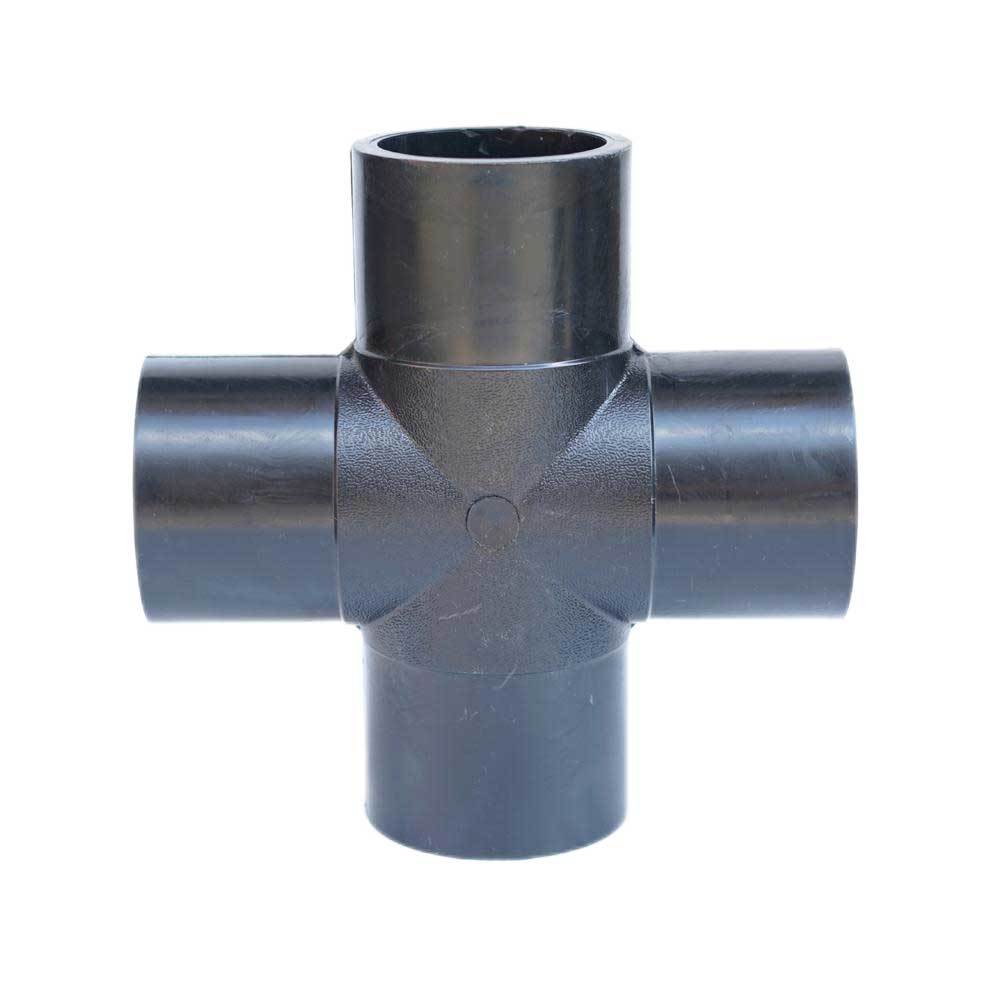

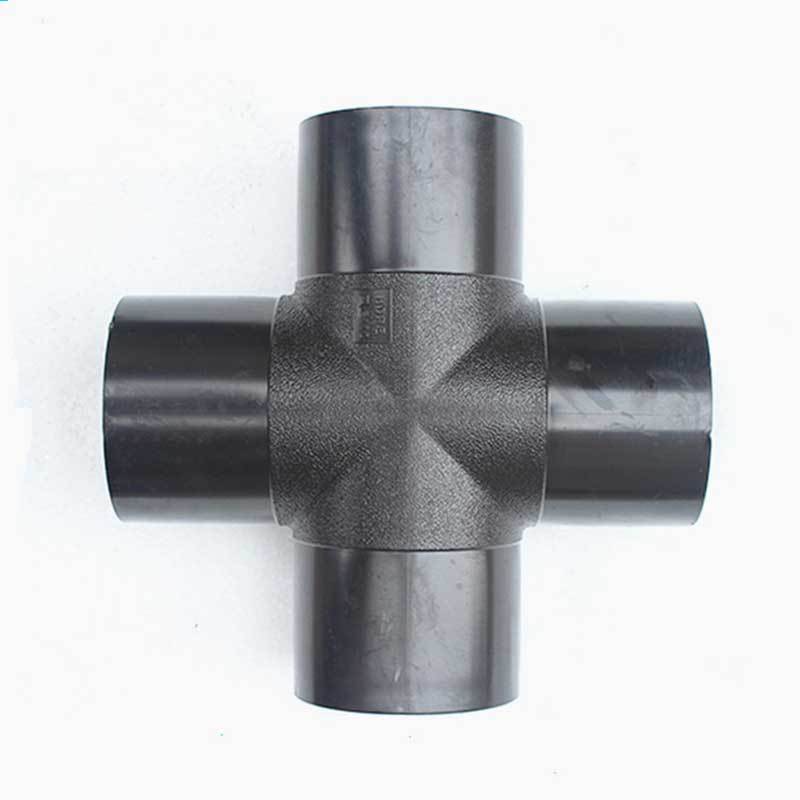

B/F Equal Cross

Size	D1 (mm)	D2 (mm)	I1 (mm)	I2 (mm)	L (mm)	SDR11	SDR13.6	SDR17
+63	63	63	60	60	198	√
+75	75	75	70	70	225	√
+90	90	90	78	78	260	√	√
+110	110	110	80	80	285	√	√
+125	125	125	85	85	295	√	√
+160	160	160	88	88	352	√	√
+200	200	200	92	92	400	√	√
+225	225	225	92	92	415	√	√
+250	250	250	103	103	480	√	√
315	315	315	103	103	555	√	√
355	355	355	140	140	640			√
+400	400	400	112	112	650	√		√
+450	450	450	140	140	740			√
+500	500	500	120	120	745			√
+560	560	560	150	150	875			√
+630	630	630	135	135	900			√
+710	710	710	180	180	1072			√
+800	800	800	185	185	1202			√

Main advantages:
*Easy to install, short welding time, and reliable joints.
*Resistant to aging and corrosion caused by both natural and human negative factors.
*Weld reliability, hydrostatic strength, and thermal stability.
*The interior and exterior surfaces of the accessories are smooth.
They are made of pipes that have passed the Acceptance testing and meet the sanitary and technical requirements of GOST 18599-2001.
This catalog introduces equal tee, reducer tee, 22.5 degree elbow, 45 degree elbow, 90 degree elbow, equal cross, reducer cross, flange, end cap and reducer with different SDR values and outer diameters. This series allows you to purchase welding formed parts for specific tasks based on size and performance.

HDPE pipe fittings wholesale manufacturer:
We manufacture butt fusion fittings and sell them in bulk directly from the factory, which makes cooperation with us especially beneficial when purchasing large lots.

Availability of products in stock ensures fast and timely shipment. For complete information and a price list for all shaped products, use the feedback form or call 0086-532-66733884.
