Description：
Butt Fusion Fittings are most often used for the installation of various pipes in places where the pipeline bends - where it makes turns, changes its size, etc. The fact is that such segment fittings are created by welding several parts of HDPE pipes into a single part, which makes it easy to obtain the required shape without loss of quality.

"POLYFUSION" company provides the purchase of polyethylene pipe fittings. They are used to construct pipelines for transporting water or other liquid and gas media. Installed at the flange connection of branch, rotating, small or large diameter transition, closed regulating valves.

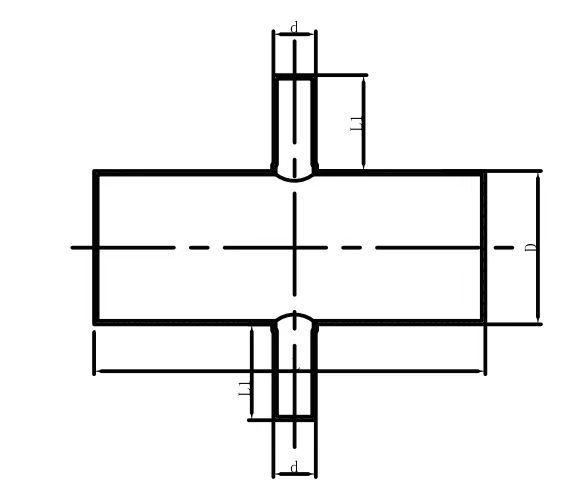

B/F Reduce Cross

Size	D (mm)	d (mm)	L	L1 (mm)		SDR11	SDR13.6	SDR17
+90*63	90	63	240	70	70	√
+110*63	110	63	279	68	68	√	√
+110*75	110	75	279	75	75		√
+110*90	110	90	279	82	82		√
+160*63	160	63	329	67	67		√
+160*75	160	75	329	74	74	√	√
+160*90	160	90	329	82	82	√	√
+160*110	160	110	329	85	85		√
+200*110	200	110	379	85	85		√
+200*160	200	160	379	85	85		√
+225*110	225	110	415	85	85		√
+225*160	225	160	415	85	85		√
+225*200	225	200	415	90	90		√
+250*110	250	110	461	95	95		√
+250*160	250	160	461	86	86		√
+250*200	250	200	461	90	90		√
+315*110	315	110	543	90	90		√
+315*160	315	160	543	90	90		√
+315*200	315	200	543	95	95	√	√
+315*250	315	250	543	110	110		√
+355*200	355	200	485	120	120			√
+400*110	400	110	351	120	120			√
+400*200	400	200	439	120	120		√	√
+450*200	450	200	490	120	120			√
+450*315	450	315	605	130	130			√
+500*110	500	110	356	125	125			√
+500*160	500	160	406	125	125			√
+500*200	500	200	445	130	130			√
+500*250	500	250	495	125	125			√
+500*315	500	315	560	130	130			√
+500X400	500	400	644	130	130			√
+560*200	560	200	515	140	140			√
+560*315	560	315	625	140	140			√
+630*200	630	200	470	135	135			√
+630*315	630	315	580	135	135			√
+710*200	710	200	568	165	165			√
+710*315	710	315	681	165	165			√
+710*400	710	400	794	165	165			√
+710*500	710	500	864	165	165			√
+710*630	710	630	993	165	165			√
+800*200	800	200	606	170	170			√
+800*315	800	315	719	170	170			√
+800*400	800	400	802	170	170			√
+800*500	800	500	902	170	170			√
+800*630	800	630	1031	170	170			√

Main advantages:
*Easy to install, short welding time, and reliable joints.
*Resistant to aging and corrosion caused by both natural and human negative factors.
*Weld reliability, hydrostatic strength, and thermal stability.
*The interior and exterior surfaces of the accessories are smooth.
They are made of pipes that have passed the Acceptance testing and meet the sanitary and technical requirements of GOST 18599-2001.
This catalog introduces equal tee, reducer tee, 22.5 degree elbow, 45 degree elbow, 90 degree elbow, equal cross, reducer cross, flange, end cap and reducer with different SDR values and outer diameters. This series allows you to purchase welding formed parts for specific tasks based on size and performance.

HDPE pipe fittings wholesale manufacturer:
We manufacture butt fusion fittings and sell them in bulk directly from the factory, which makes cooperation with us especially beneficial when purchasing large lots.

Availability of products in stock ensures fast and timely shipment. For complete information and a price list for all shaped products, use the feedback form or call 0086-532-66733884.
