Description：
Butt Fusion Fittings are most often used for the installation of various pipes in places where the pipeline bends - where it makes turns, changes its size, etc. The fact is that such segment fittings are created by welding several parts of HDPE pipes into a single part, which makes it easy to obtain the required shape without loss of quality.

"POLYFUSION" company provides the purchase of polyethylene pipe fittings. They are used to construct pipelines for transporting water or other liquid and gas media. Installed at the flange connection of branch, rotating, small or large diameter transition, closed regulating valves.

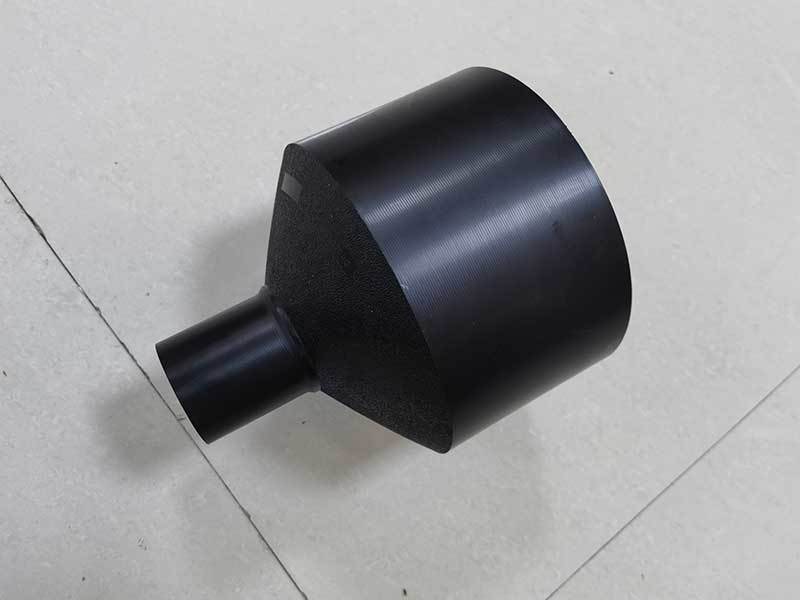

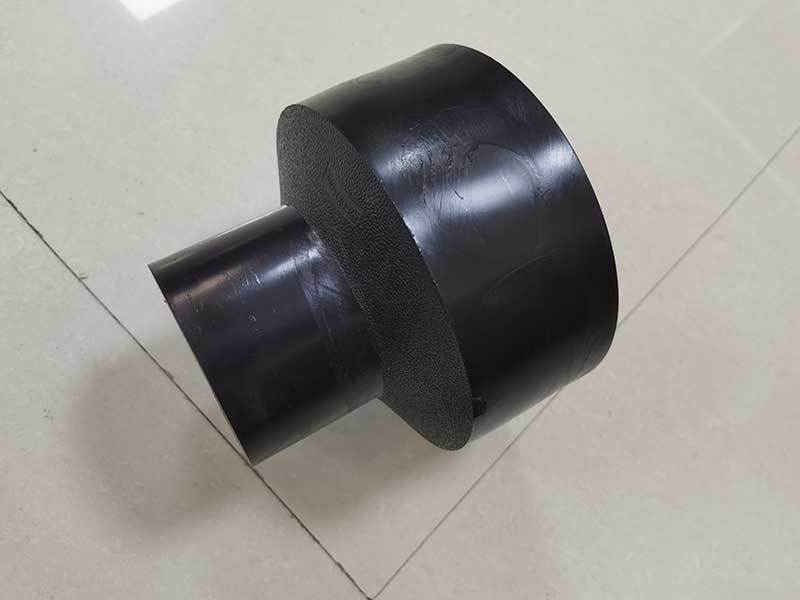

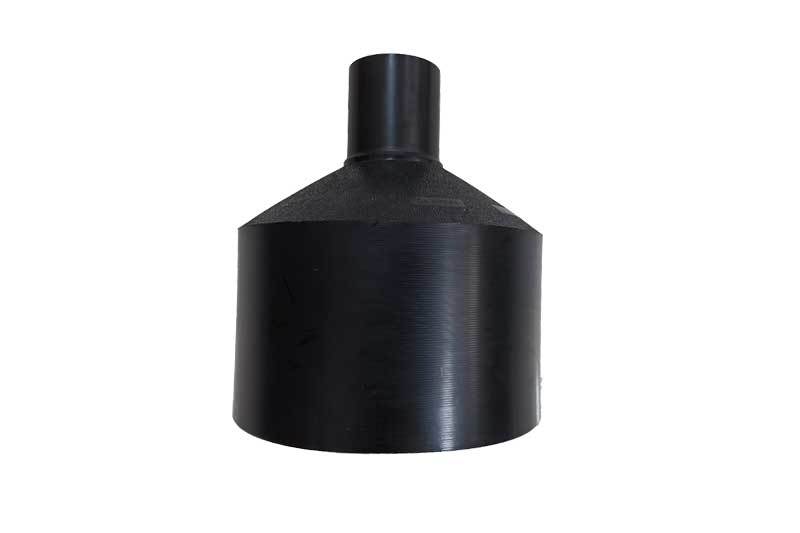

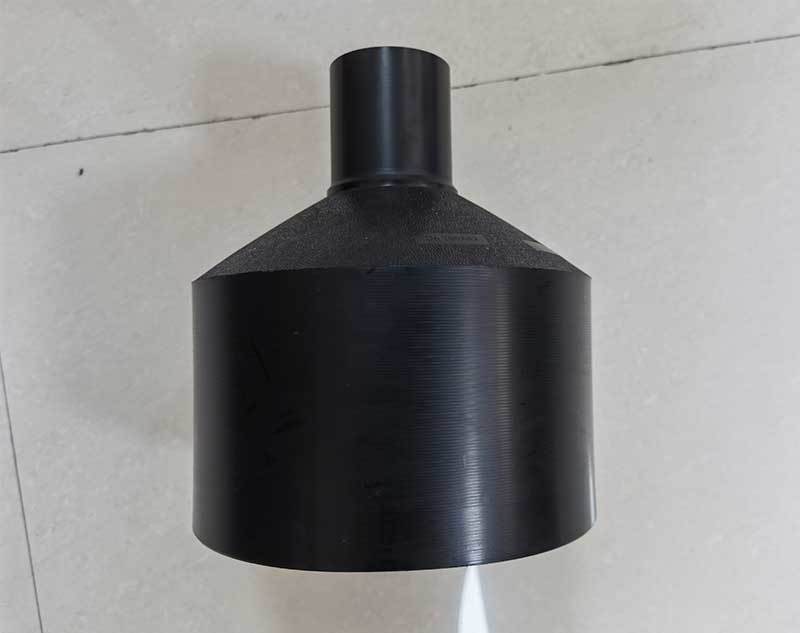

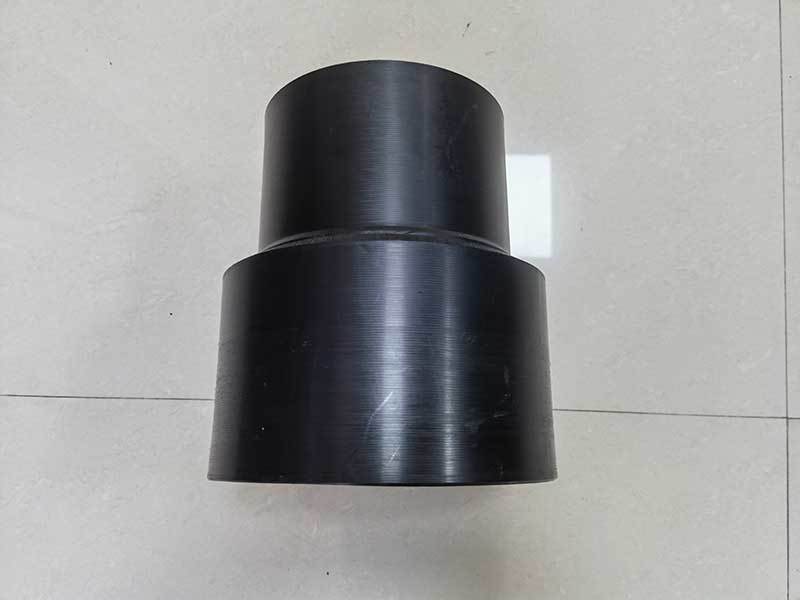

REDUCER

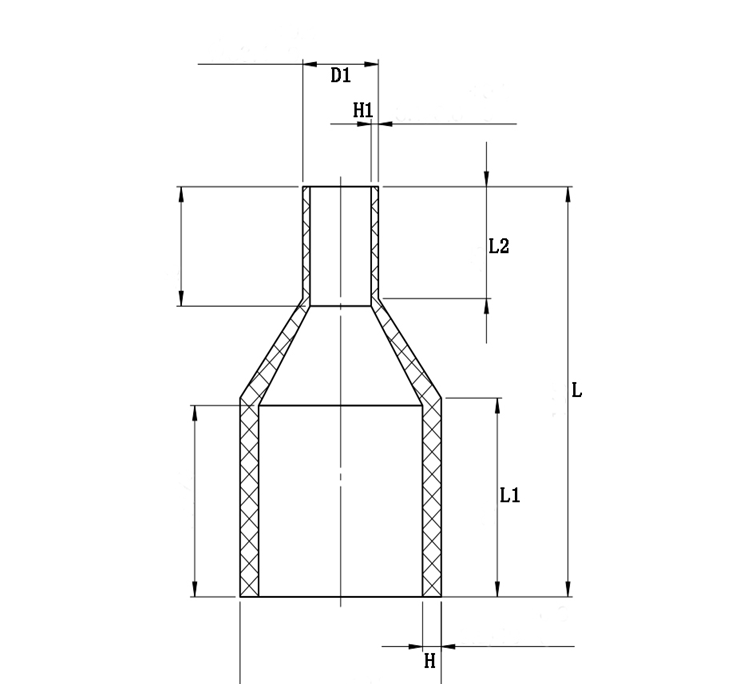

Size	D（MM）	D1(MM)	L（MM）	L1（MM）	L2(MM)	H（MM）	H1（MM）	H（MM）	H1（MM）
Size	D（MM）	D1(MM)	L（MM）	L1（MM）	L2(MM)	SDR9	SDR9	SDR11	SDR11
2"X1"	60.3	33.4	155	72	45	7	3.8	5.6	3.1
3"X1"	88.9	33.4	155	72	45	10	3.8	8.2	3.1
3"X2"	88.9	33.4	165	80	45	10	7	8.2	5.6
4"X2"	114.3	60.3	165	80	67	13	7	10.5	5.6
4"X3"	114.3	60.3	180	84	67	13	7	10.5	5.6
6"X2"	168.3	60.3	180	84	67	19	7	15.5	5.6
6"X3"	168.3	60.3	220	108	72	19	10	15.5	8.2
6"X4"	168.3	88.9	220	108	80	19	13	15.5	10.5
8"X3"	219.1	114.3	220	108	84	25	10	20.5	8.2
8"X4"	219.1	88.9	250	115	80	25	13	20.5	10.5
8"X6"	219.1	168.3	250	115	108	25	19	20.5	15.5

Main advantages:
*Easy to install, short welding time, and reliable joints.
*Resistant to aging and corrosion caused by both natural and human negative factors.
*Weld reliability, hydrostatic strength, and thermal stability.
*The interior and exterior surfaces of the accessories are smooth.
They are made of pipes that have passed the Acceptance testing and meet the sanitary and technical requirements of ISO4427.

HDPE pipe fittings wholesale manufacturer:
We manufacture butt fusion fittings and sell them in bulk directly from the factory, which makes cooperation with us especially beneficial when purchasing large lots.
Availability of products in stock ensures fast and timely shipment. For complete information and a price list for all shaped products, use the feedback form or call 0086-532-66733884.
