ASTM IPS равный тройник

Категория:

Продукция

Фитинги hdpe

Фитинги для стыковой сварки ASTM IPS INCH

Горячая линия:

86-15705856568

Запрос продукта

Description：
Butt Fusion Fittings are most often used for the installation of various pipes in places where the pipeline bends - where it makes turns, changes its size, etc. The fact is that such segment fittings are created by welding several parts of HDPE pipes into a single part, which makes it easy to obtain the required shape without loss of quality.
"POLYFUSION" company provides the purchase of polyethylene pipe fittings. They are used to construct pipelines for transporting water or other liquid and gas media. Installed at the flange connection of branch, rotating, small or large diameter transition, closed regulating valves.

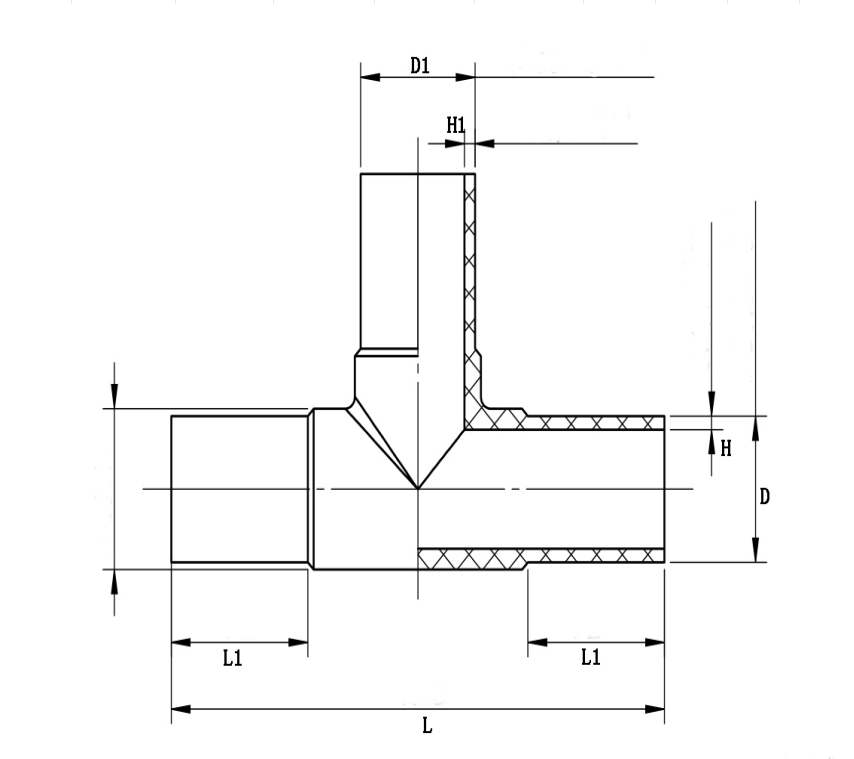

Size	D（MM）	D1(MM)	L（MM）	L1（MM）	H（MM）	H1（MM）	H（MM）	H1（MM）	H（MM）	H1（MM）
					SDR9	SDR9	SDR11	SDR11	SDR17	SDR17
1*1/2"	48.3	48.3	211.2	67	5.5	5.5	4.5	4.5	-	-
2"	60.3	60.3	260	72	7	7	5.6	5.6	-	-
3"	88.9	88.9	310	80	10	10	8.2	8.2	-	-
4"	114.3	114.3	348	84	13	13	10.5	10.5	-	-
6"	168.3	168.3	456	108	19	19	15.5	15.5	-	-
8"	219.1	219.1	580	152	25	25	20.5	20.5	-	-
10"	273	273	662	140	25	25	16.5	16.5	-	-
12"	323.9	323.9	720	150	-	-	30	30	19.5	19.5
14”	355.6	355.6	760	152	-	-	33	33	21.5	21.5
16”	406.4	406.4	760	130	-	-	38	38	24.5	24.5
18”	457.2	457.2	823	130	-	-	43	43	27.5	27.5

Main advantages:
*Easy to install, short welding time, and reliable joints.
*Resistant to aging and corrosion caused by both natural and human negative factors.
*Weld reliability, hydrostatic strength, and thermal stability.
*The interior and exterior surfaces of the accessories are smooth.
They are made of pipes that have passed the Acceptance testing and meet the sanitary and technical requirements of ISO4427.

HDPE pipe fittings wholesale manufacturer:
We manufacture butt fusion fittings and sell them in bulk directly from the factory, which makes cooperation with us especially beneficial when purchasing large lots.
Availability of products in stock ensures fast and timely shipment. For complete information and a price list for all shaped products, use the feedback form or call 0086-532-66733884.
